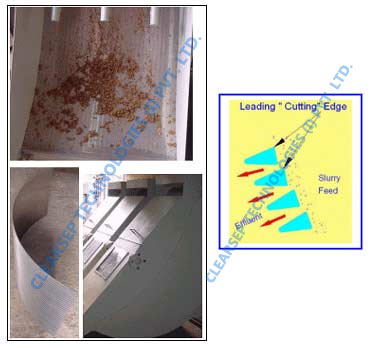

DSM Screen ('COANDA EFFECT' Static Screen)

( For Continuous & Unattended Separation of Solids in Starch Plants, Cane Sugar Plants, Mine, Effluent Plants )

FEATURES

• No moving parts
• Unique 'Tilted wire' welded wedge wire sieve bend
• Simple screen holding arrangement
• Top over flow / Spray jet feed
• Pneumatically operated washing jet for screen surface
• Solids conveyor at the bottom, optional,
• 50 Microns and above

ADVANTAGES

• Safe and hygienic operation
• Stand alone equipment
• Unattended operation
• Excellent separation efficiency
• Simple screen replacement design

DSM Screen, Static Screen, Review Of Filtration System, Non-Clean-In-Place Type Filtration Equipment & System, Filtration Equipment, System & Components, Mumbai, India

AVAILABILITY RANGE

HOUSING	SCREEN	SCREEN TYPE	SIZES	CLARITY
All grades of Stainless steel, Carbon Steel,	All grades of Stainless steel,	Welded wire of 'TILTED WIRE' construction,	Modular Design	50 Microns and above

Note.: Conditions apply, consult us for more details, all trade marks acknowledged

APPLICATION

Cooling water filtration, Side stream filtration, Condensate water filtration, Seawater /Lake water filtration, Column bottoms purification, Clarification of all low solids / high flow applications.

For your application, mail us with details response@selfcleaningfilters.in
