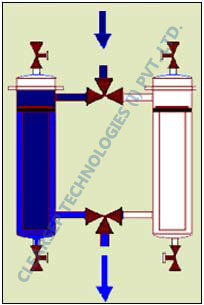

bullet Single / Duplex Filter

( For Cost Effective & Fine Filtration of Process Liquids on Pump Suction / Discharge )

FEATURES

• Simple surface filtration equipment
• Three way valve for quick-change over
• Inside to outside flow
• Triclover type body joint
• Static sealing between unfiltered & filtered liquid

ADVANTAGES

• Bags replacement without the help of any tools
• Quick opening type body flange joints
• Bag replacement without disturbing the pipelines
• Solids retained in the bag, easy for disposal
• Minimum maintenance

Single Filter, Duplex Filter, Jacketed Single Filters, Jacketed Duplex Filters, Single Filters With Wedge Wire Elements, Duplex Filters With Wedge Wire Elements, Mumbai, India


AVAILABILITY RANGE

HOUSING
WEDGE WIRE
SIZES
SERVICE RANGE

All grades of Stainless steel, Carbon Steel,

Nylon, Polypropylene, Polyester, Cotton, Teflon coated bags, anti-static bags and also in wire mesh baskets

15 NB to 150 NB

Upto 30 Kg/cm2, Upto 220deg C One micron and above

    Note.: Conditions apply, consult us for more details, all trade marks acknowledged

APPLICATION

Pump suctions, Feeding systems, Process water, All incoming liquid raw material lines, Liquid filling lines, Fine polishing, In all low solids/high flow applications.

For your application, mail us with details response@selfcleaningfilters.in



OPTIONS AVAILABLE

• Jacketed Single & Duplex Filters
• Single & Duplex Filters with Wedge Wire elements (for 50 microns & above only)
• Single & Duplex Filters with outside to inside flow
